KPBA-2006 series dual-colour SMD LEDs from Kingbright

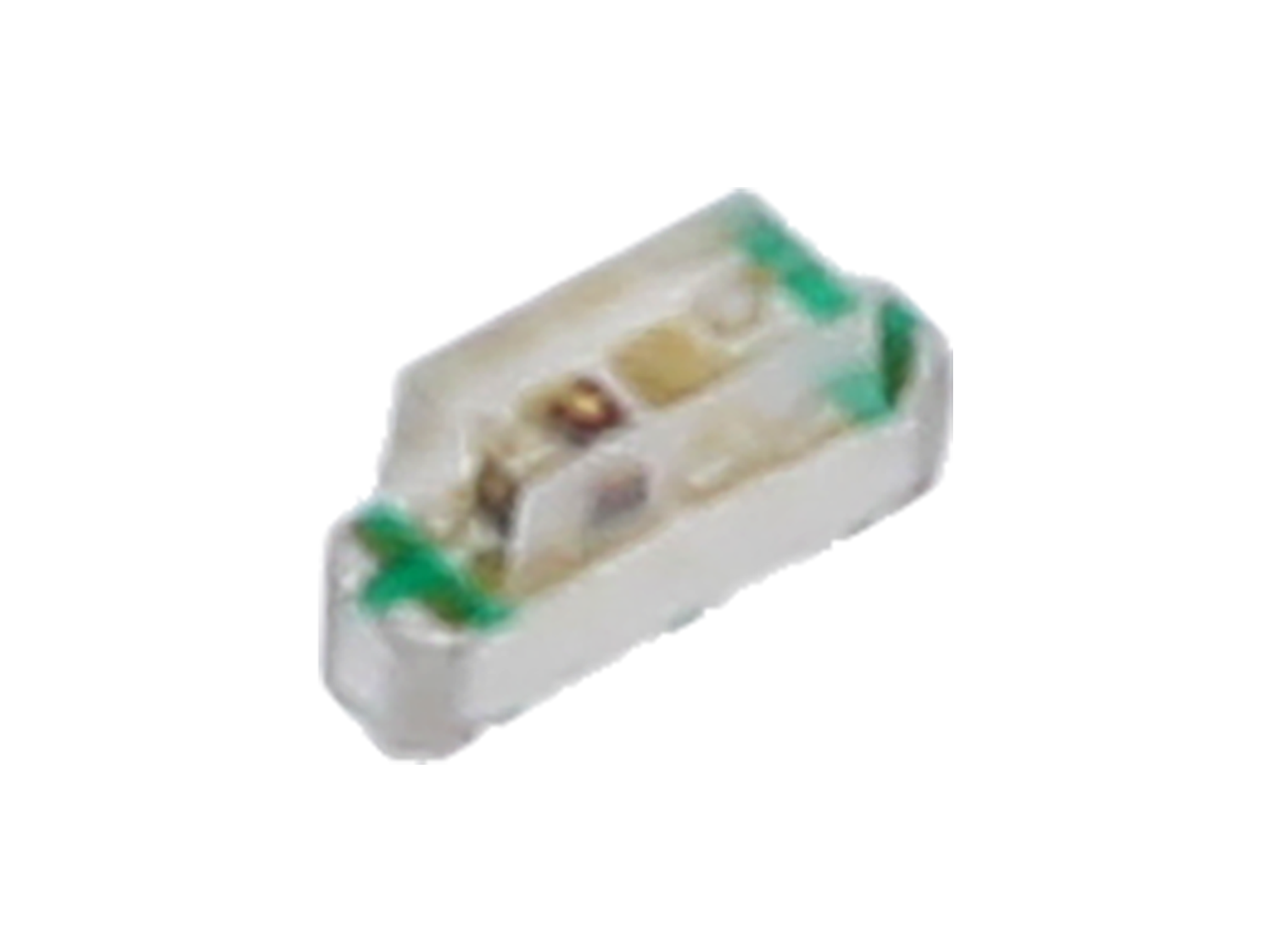

Kingbright, a well-respected brand with a long-standing presence in the market, has launched the KPBA-2006 series of products, which includes dual-colour, side-looking LEDs housed in SMD packages (designed for surface mounting). These components offer a small size (0.65 x 0.65 x 0.25 mm) and are an attractive option, especially for designers seeking solutions to implement classic light indicators in mobile and compact devices.

A single SMD package accommodates two LED structures made of AlGaInP (a compound of aluminium, gallium, indium and phosphorus) or InGaN (indium gallium nitride), combined into a dual-colour light-emitting diode. Available in 4 colour combinations: green-yellow, red-yellow, red-green and red-blue, these LEDs boast low power consumption (20 mA) and a wide viewing angle (140°). Their leads are tin-plated, thanks to which they can be mounted on a PCB with ease. In addition, the LEDs are Electronic Industries Alliance (EIA) compliant and therefore suitable for a wide range of professional applications.

The KPBA-2006 series has been designed with illumination and status indication applications in mind. Thanks to their typical performance and small size, these products will surely meet the requirements of a multitude of projects. Kingbright LEDs can be used in consumer appliances (including smart and IoT solutions), mobile devices, as well as in medical devices.

New displays from Powertip

* depending on the model

Product overview

Symbol	Colour	Luminosity LVmin (20 mA) [mcd]	Luminosity LVtyp (20 mA) [mcd]
KPBA-2006SYKCGKC	green/yellow	40 / 8	100 / 40
KPBA-2006SURKSYKC	red/yellow	60 / 40	240 / 100
KPBA-2006SURKCGKC	red/green	60 / 8	240 / 40
KPBA-2006SURKZGKC	red/green	60 / 100	240 / 450
KPBA-2006SURKVBA1C	red/blue	60 / 20	240 / 90
